商品の詳細:
|
| ハイライト: | 30W 48V Passive POE Injector,1000Mbps POE Injector for IP Camera,Passive POE Injector for Access Point |
||
|---|---|---|---|
| Item | 12V 24V 48V POE Adapter |
|---|---|
| Place of Origin | China |
| Type | Poe combiner |
| Application | Wireless ap bridge monitoring equipment |
| Gender | Male |
| Shape | Square |
| Rated Current | 1A |
| Contact Material | Copper |
| IP level | Ip20 |
| Brand Name | KUNCAN |
| Model Number | KC-POE |
| Housing Material | ABS |

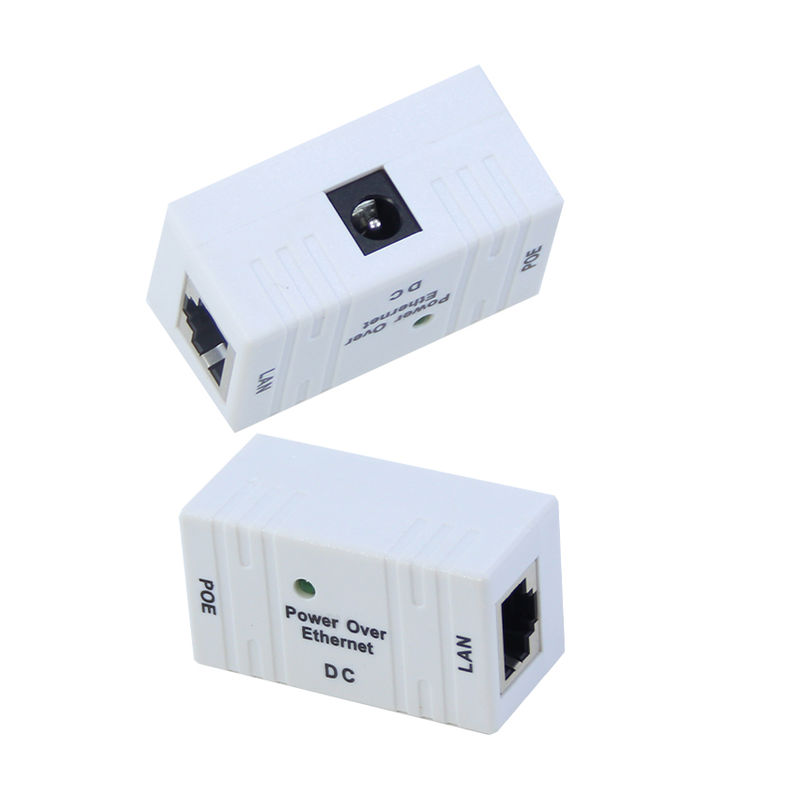

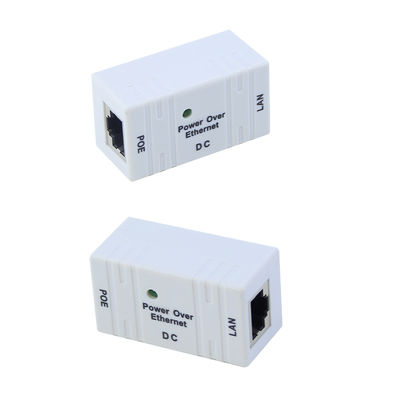

This passive PoE injector delivers both data and power through a single Ethernet cable, eliminating the need for separate power connections. Supporting full Gigabit Ethernet speeds of 1000Mbps, it provides efficient power delivery for network devices while maintaining high-speed data transmission.
| Power Input | |
|---|---|
| AC Input Voltage Range | 100-240V |
| AC Input Frequency | 50/60Hz |
| Power Output | |
| DC Output Voltage | 48V |
| Maximum Output Power | 30W |
| Network Performance | |
| Transmission Speed | 10/100/1000Mbps |
| Connection Interface | RJ45 ports |
| Cable Compatibility | Cat5e/Cat6 |
| Physical Characteristics | |
| Dimensions | 80mm x 55mm x 30mm |
| Weight | Approximately 200 grams |
| Operating Temperature | -10°C to 50°C |

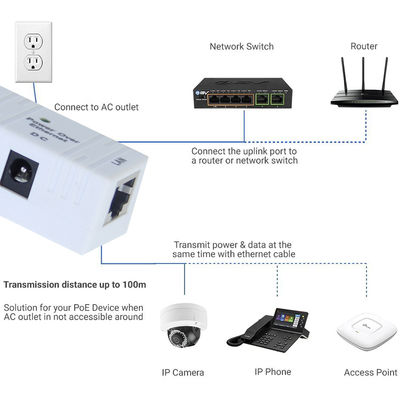

Cable distances of up to 100 meters are supported when using appropriate cabling. For large-scale installations, multiple units can be deployed to create an efficient network power distribution system. The device offers a reliable alternative to active PoE solutions while maintaining complete data integrity at Gigabit speeds.
A: We are factory of more than 16 years export experience.
A: T/T 30% as deposit, and 70% before delivery.
A: EXW, FOB, CFR, CIF, DDU.
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.
A: Yes, we have 100% test before delivery.
A: At your request, by sea, by express, all are available.
Passive PoE Injector 30W 48V Gigabit Ethernet Power Adapter 1000Mbps for IP Camera Access Point Network Switch
