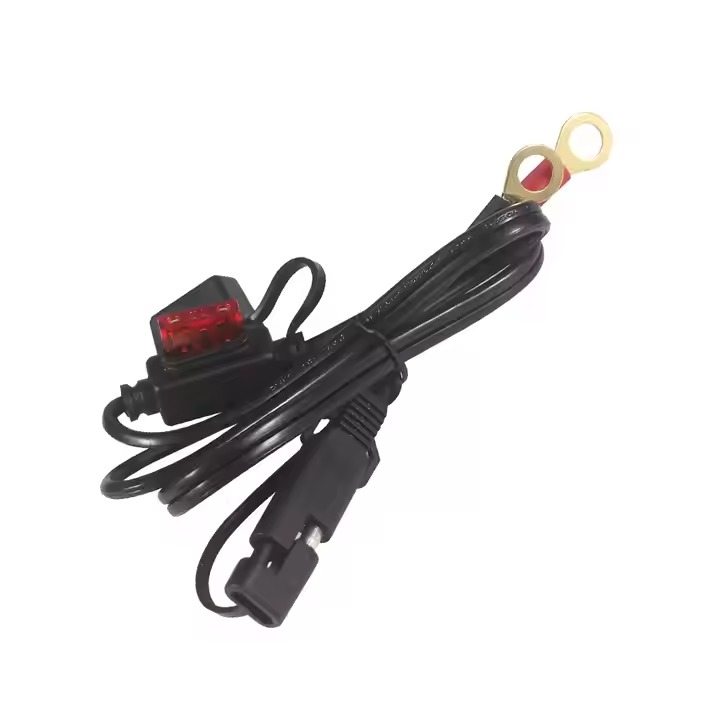

SAE to O-Ring Terminal Battery Cable with Inline Fuse - 12V Quick Disconnect Charging Wire for Motorcycle, ATV, Car
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | SAE to O-Ring Terminal Cable with Inline Fuse |
| Input Connector | SAE 2-Pin Quick Disconnect Plug (Standard Polarity) |
| Output Terminal | M6/M8 O-Ring Terminal Lugs (Red + Black) |
| Voltage Rating | DC 12V / 24V |
| Rated Current | 5A / 10A / 15A (Fuse Replaceable) |
| Wire Gauge | 16AWG / 14AWG / 18AWG / Custom |
| Fuse Type | Inline Blade Fuse (ATC/ATO) |
| Conductor Material | Tinned Copper |
| Insulation | PVC / Rubber |
| Cable Length | 30cm / 50cm / 1m / Custom |
| Color | Red & Black |
The SAE to O-Ring Terminal Battery Cable is a reliable, quick-connect solution for maintaining and charging 12V batteries in motorcycles, cars, ATVs, RVs, and more.
Equipped with a built-in inline fuse, it ensures overcurrent protection while maintaining a secure connection to the battery using M6 or M8 ring terminals. Commonly used with trickle chargers, solar panels, and battery maintainers.
Quick Disconnect SAE Plug – Compatible with most battery maintainers, solar chargers
O-Ring Terminal Lugs – Easy to attach to battery posts

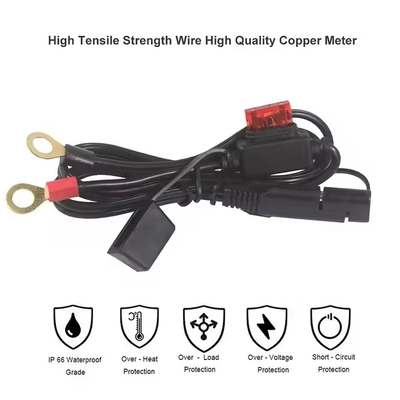

Inline Fuse Protection – Prevents short circuit and overcurrent damage
Tinned Copper Core – Low resistance & excellent conductivity

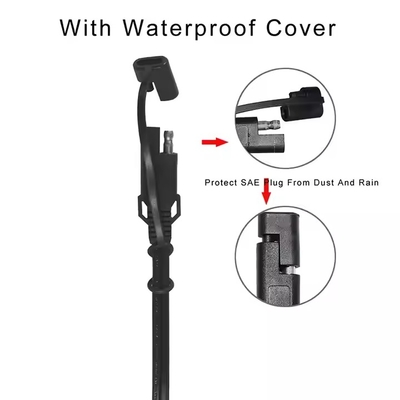

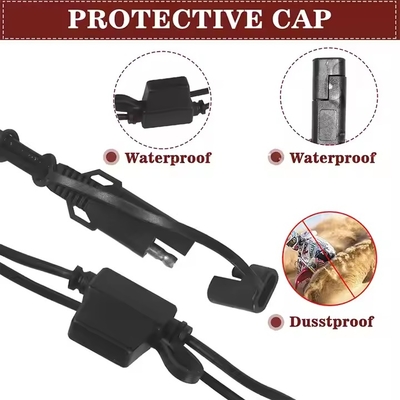

Weatherproof Cap – SAE end with dustproof rubber cap

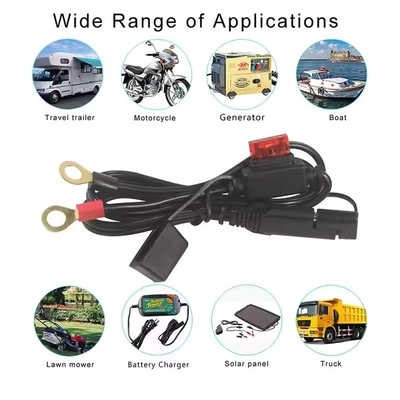

Motorcycle battery charging
Car and ATV battery maintainers
Solar panel to battery connection
Portable power supply DIY kits
Long-term parked vehicle battery protection
| Item | Options |
|---|---|
| Cable Length | 30cm / 50cm / 1m / 1.5m / Custom |
| Wire Gauge | 14AWG / 16AWG / 18AWG / Custom |
| Fuse Rating | 5A / 7.5A / 10A / 15A / Custom |
| Terminal Size | M6 / M8 / M10 O-Ring |
| Jacket Material | PVC / Silicone / Rubber |
| Plug Cap | With or without weatherproof cover |
| Logo | Custom molded plug or cable printing |
| Packaging | Polybag / Blister / Color Box / Custom |
