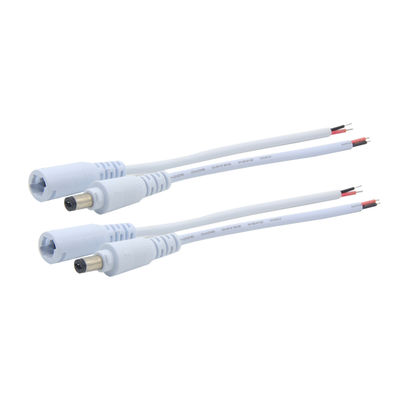

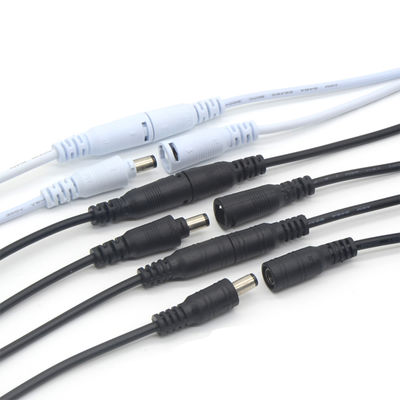

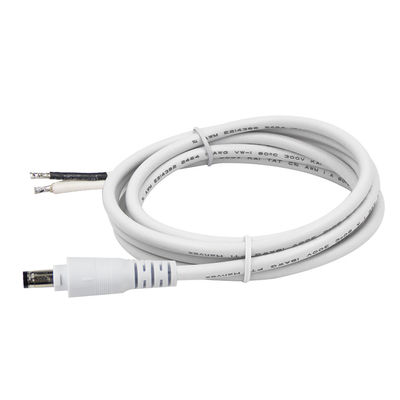

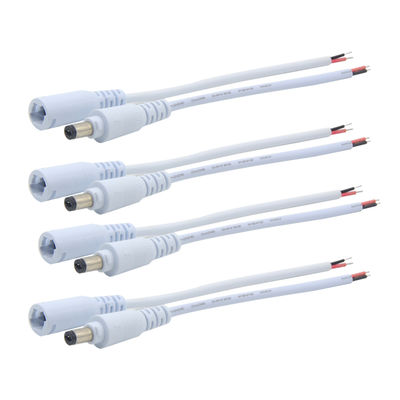

DC Male Plug / Female Jack to Tinned Bare Wire Termination -5mm x 2.1mm Power Connector Cable for CCTV, LED, DIY Applications
| Parameter | Description |
| Product Name | DC Male Plug / Female Jack with Tinned Wire Ends |
| Connector A | DC Male Plug (5.5mm Outer x 2.1mm Inner) |
| Connector B | DC Female Jack (5.5mm Outer x 2.1mm Inner) |
| Wire Termination | Pre-stripped and Tinned Bare Copper Wire |
| Cable Length | 1.2M/1.5M/1.8M/2M/3M(OEM) |
| Conductor | Pure Copper / Tinned Copper |
| Insulation | PVC Jacket |
| Operating Temperature | –20°C to +60°C |
| Wire Gauge | 22AWG / 20AWG (customizable) |
| Voltage Rating | 5V / 12V / 24V DC (Max 5A) |
This DC Male & Female Plug with Tinned Wire Ends provides a reliable and solder-ready solution for powering devices through direct DC wire connections. Whether you’re connecting a CCTV system, LED strip, or prototyping an electronics project, this cable lets you easily bridge between standard DC barrel connectors and open terminals.
Ideal for applications requiring custom power wiring, DIY repairs, or temporary setups.
Standard 5.5mm × 2.1mm Barrel Size – Widely compatible with DC devices
Male & Female Pair – Use for inline extension or input/output termination
Tinned Copper Wires – Easy to solder or connect to screw terminals
Durable PVC Jacket – Flexible and resistant to wear
Available in Custom Lengths and Gauges
CCTV Camera Systems
LED Strip Light Power Connections
DIY Electronics and Repair Projects
DC Power Supply Extension and Adapters
Test Benches, IoT & Prototyping Circuits
Match polarity correctly before connection (Red = +, Black = –)
Do not exceed 5A current rating
For long-term use, secure tinned ends with solder or screw terminal blocks
Store in dry environments to prevent corrosion
| Option | Description |
|---|---|
| Connector Size | 5.5×2.1mm / 5.5×2.5mm / 3.5×1.35mm |
| Configuration | Male Only / Female Only / Male + Female Pair |
| Wire Gauge | 22AWG / 20AWG / 18AWG |
| Cable Length | 15cm / 30cm / 50cm / 1m / Custom |
| Jacket Color | Black / White / Transparent / Custom |
| Packaging | PE Bag / Label Bag / Color Box |
| Branding | Label, Heat Shrink, Printed Tags Available |
